1G DSM Datalogger Cable

1G DSM Datalogger Cable Picture
1G DSM Datalogger Cable

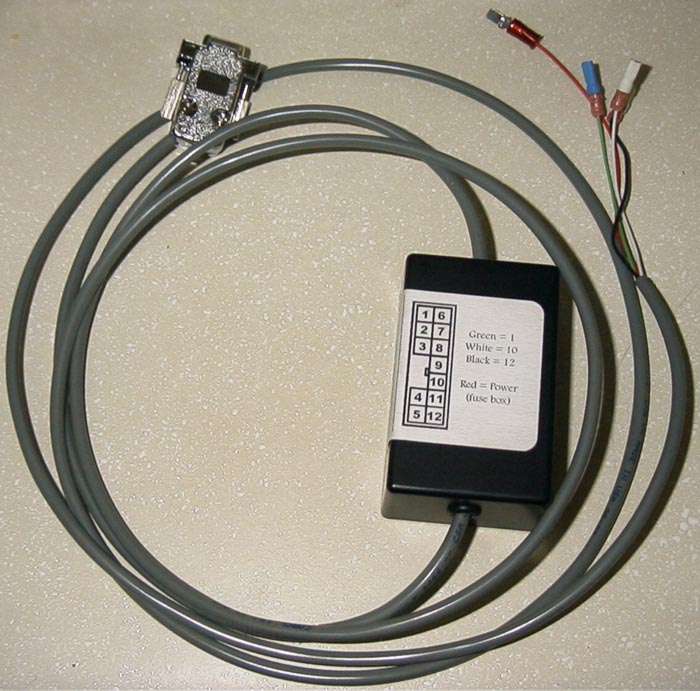

This is the finished product. I have laser-printed labels which illustrate the connections to the diagnostic ECU connector. On the 1G DSM cars, this connector is directly to the right of the fuse box, in front of the driver's left knee. It is usually covered with a black rubber cap.
