1G DSM Datalogger Cable

1G DSM Datalogger Cable Schematic
1G DSM Datalogger Schematic

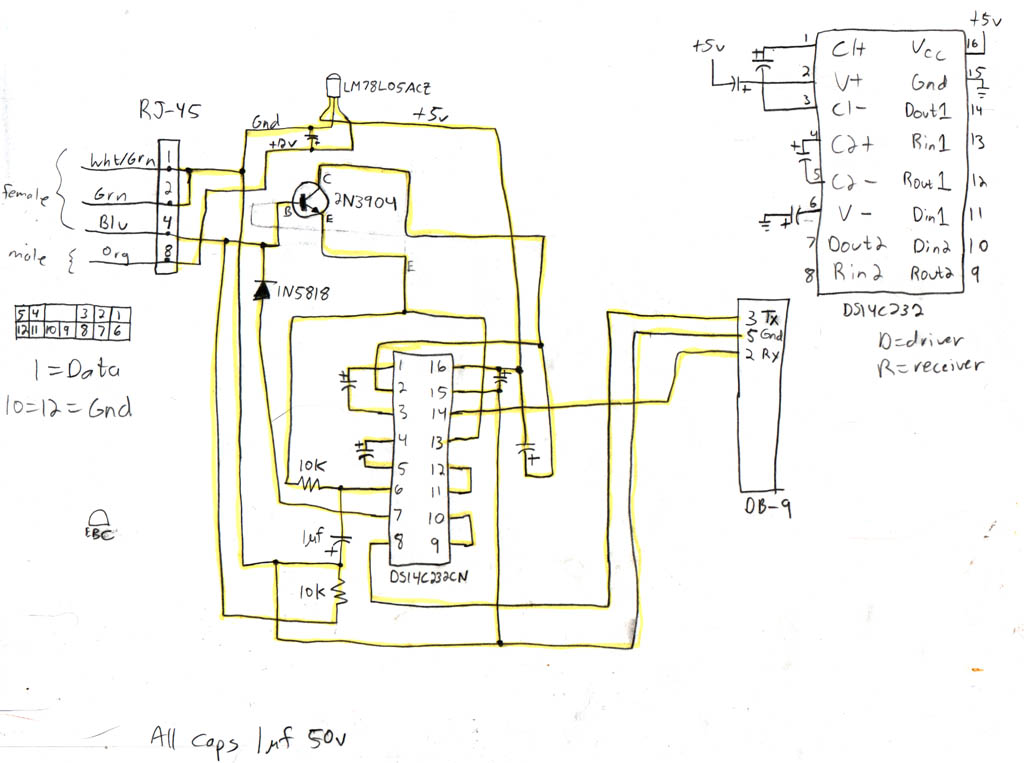

This is the original rough schematic that I sketched from examining another datalogger cable.
