RaceGauge Picture

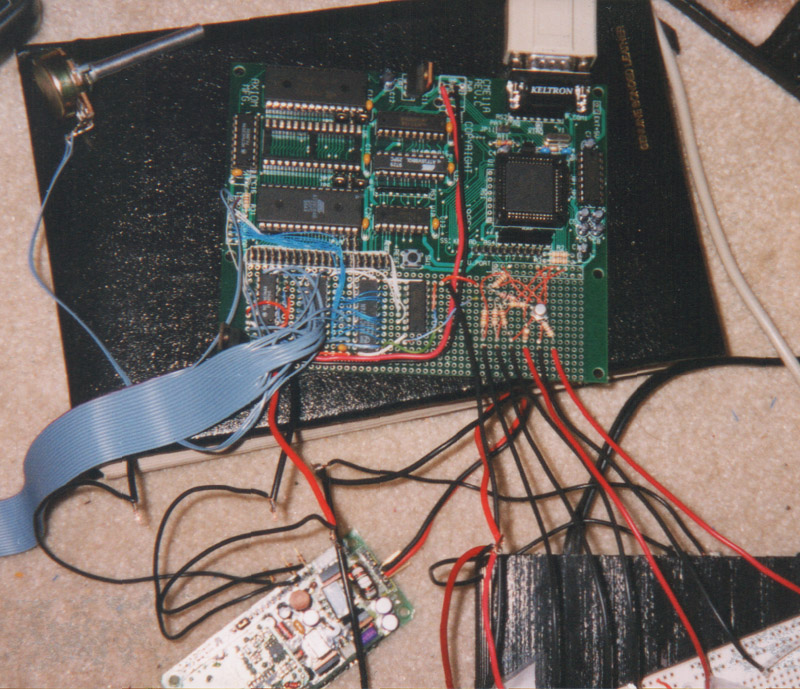

Here you can see the HC11 processor board with custom interface circuitry on the bottom. The main power supply is at the bottom center of the picture, and a tiny piece of the test signal breadboard is on the lower-right.
