RaceGauge Picture

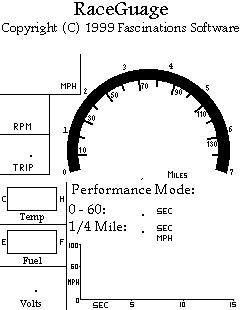

This is the compressed bitmap stored on the Flash ROM of the MPU board. This bitmap is broken into three segments for display on the two LCD modules. The active display areas of this bitmap are created dynamically by functions in the software.
